Drawn to shastra. Engineered to last.

Every structure in the kshetra is fully drafted — ground plans, sectional elevations and site engineering by Kalarathna Dr. A. Velu Sthapathi with the Nirman architectural team. The project is ready to build.

20-ft internal roadsRCC, fully planted

70' × 170' Kalyanam hallWith dining & kitchen blocks

Circular parikramaStatue at the exact centre

Underground utilitiesDrainage & electrical integration

Open theatres × 2For Ramayana evenings

Commercial complexShops & canteen at the gate

The Drawings

Click any sheet to inspect

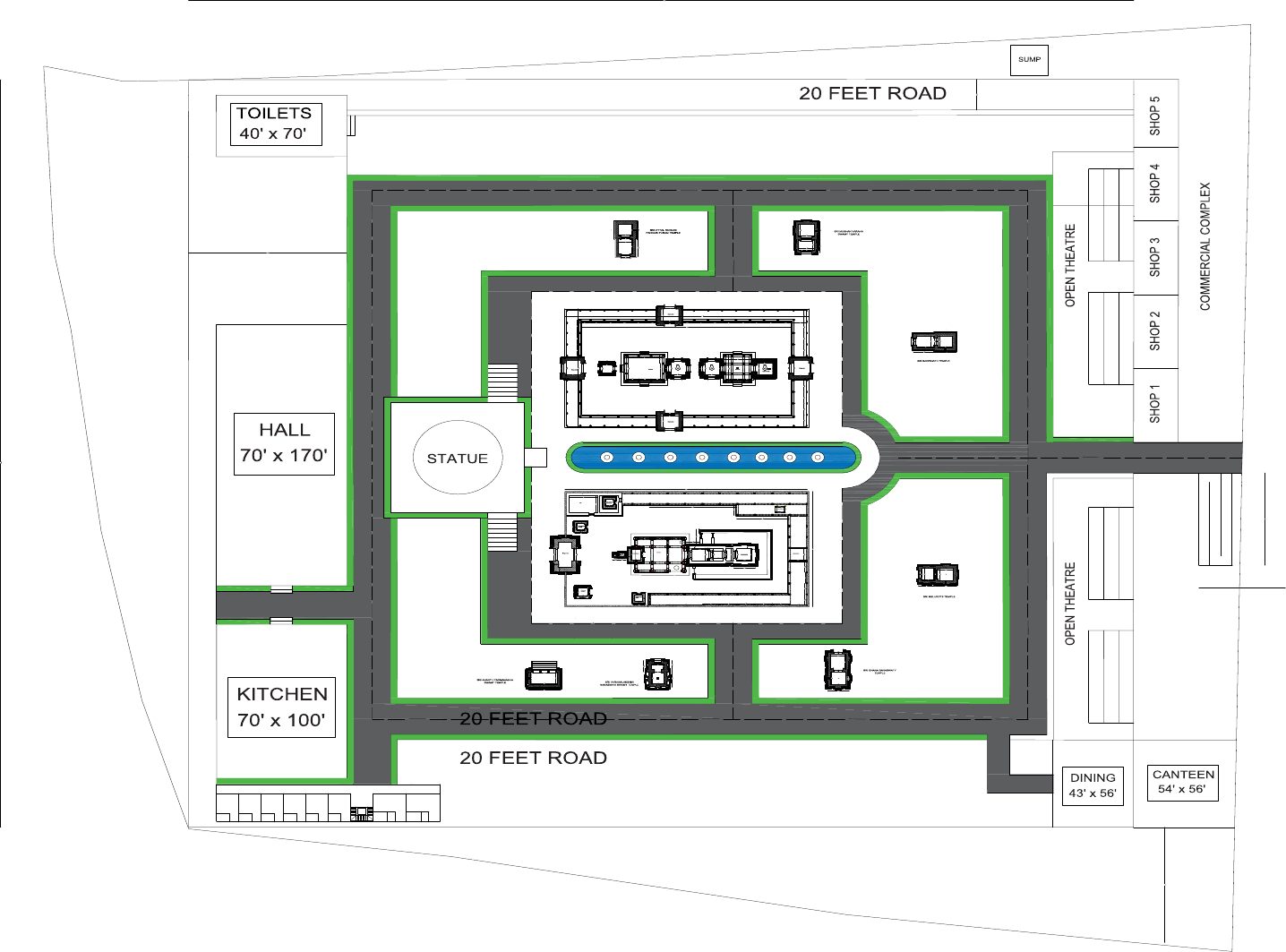

Site Master Plan

Sheet 01 · Layout

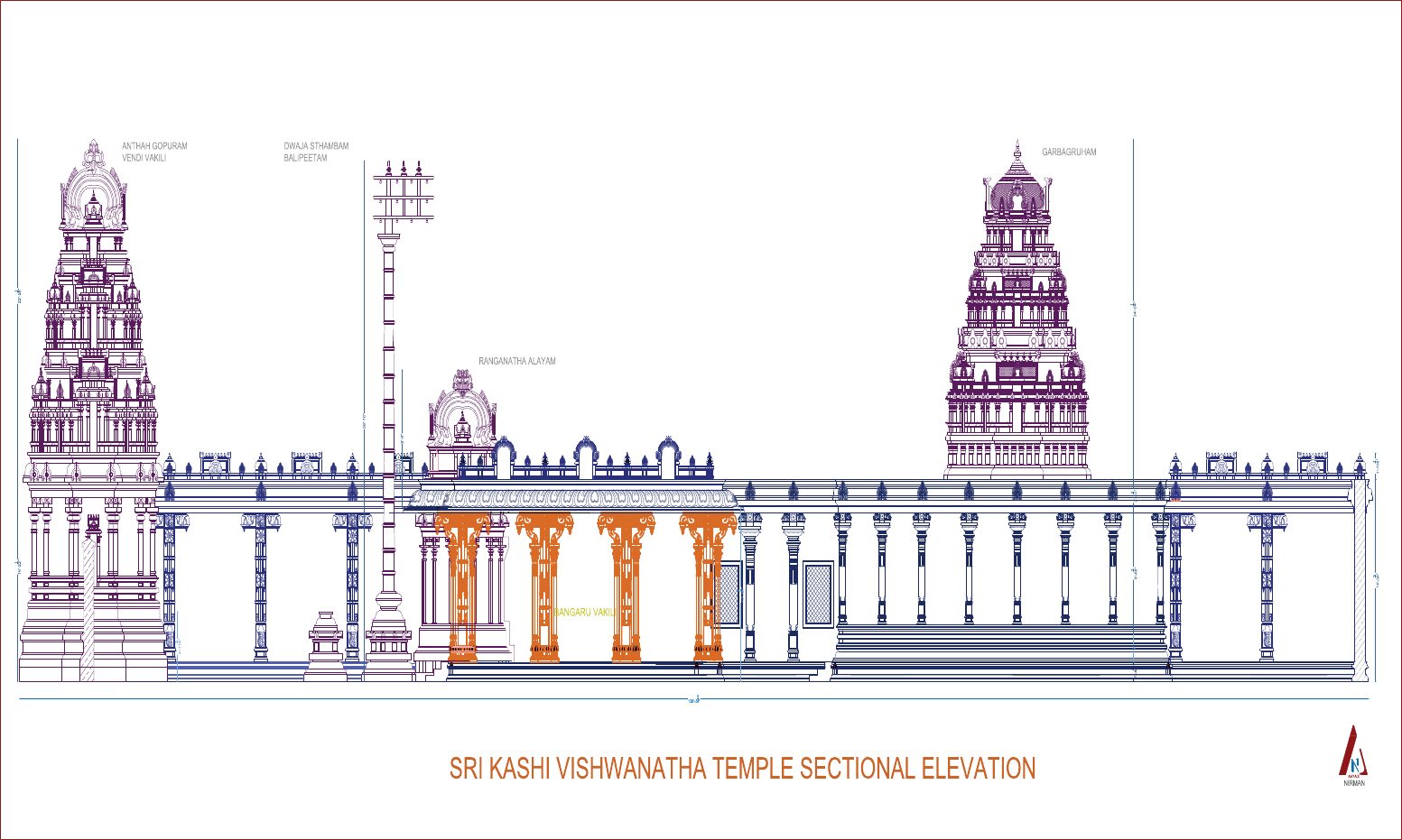

Temple Sectional Elevation

Sheet 02 · Section

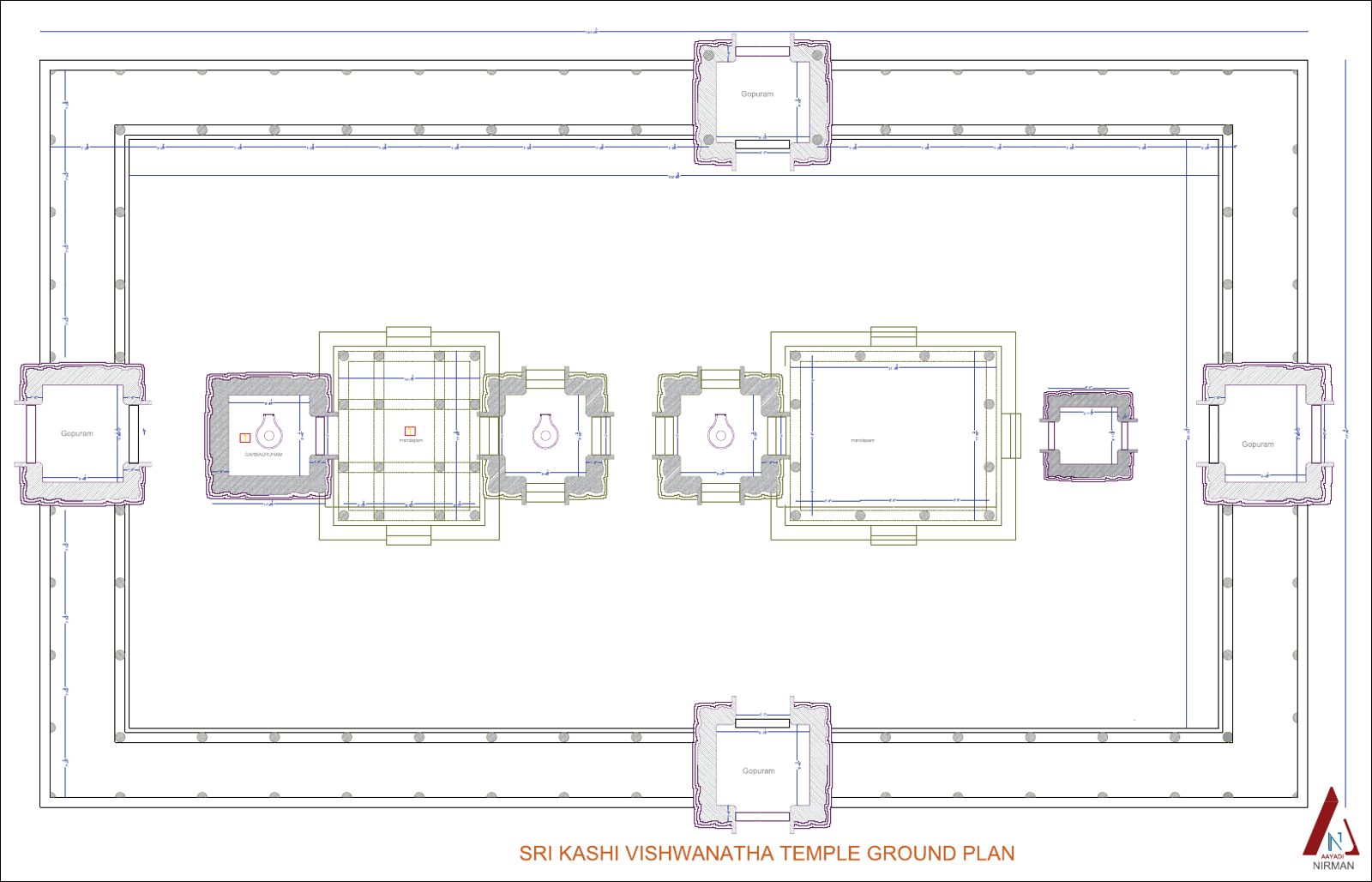

Temple Ground Plan

Sheet 03 · Plan

Temple Complex — Ground Plan

Sheet 04 · Plan
